The stretching force of the tire bead, depending on the diameter, is of particular importance in the assembly and practical use of a wheel. The new generation of the tire bead compression machine, type WKM-Evo, checks quickly and efficiently whether the bead parameters are within admissible limits.
Measuring rim segments

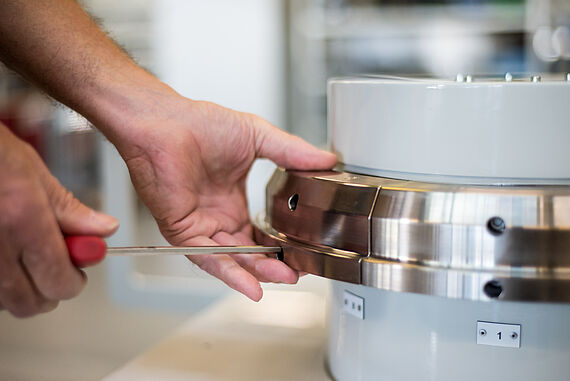

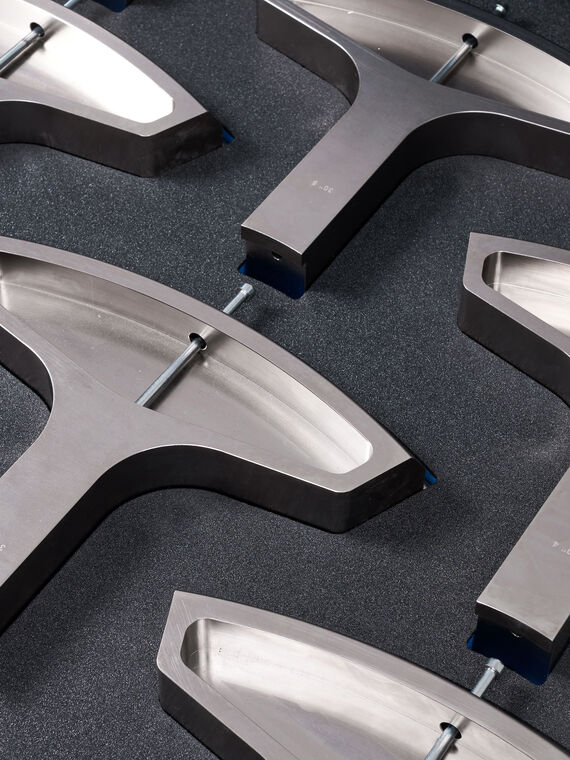

A different set of rim segments must be used for each bead nominal diameter. Each set consists of eight rim segments. A calibration ring is provided for each diameter for setting the segments to the nominal diameter. The measuring rim segments are designed according to WDK-116.
The holder of the tire bead compression machine exactly simulates a rim half. Eight radially movable rim segments are synchronously expanded outward by an electrically actuated traction cone up to the specified limit value.
The resulting contact pressure of the tire bead is meassured by eight force transducers fitted 45° apart. The curve of the bead pressing force is displayed dependent on the diameter on the multitouch panel. The rim segments are arranged in such a way that easy insertion and removal of the tire is ensured.
Our tire bead compression machine

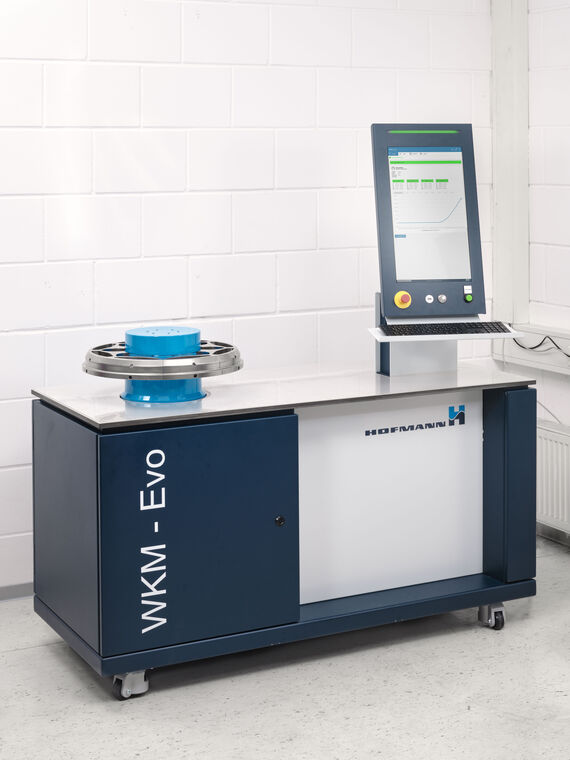

We offer the following type of the tire bead compression machine WKM-Evo:
In the basic version with the following equipment:
- Test speed 5–60 mm/min
- Bead seat contact force 15 000 N
- Standard force transducer 8
- Power supply 230 (400/50 (60) (V/HZ)
- Mobile machine with rollers and plug-and-play solution by CEE plug
- SQL database
- Execution according to CE regulations
- Certified calibration device
Options of tire bead compression machine
Additional equipment options for the WKM-Evo are:
- Rim segments from 12" to 30" with matching zero rings
- Mobile tool trolley for rims, zero ring and calibration unit
- Machine cover
- Remote maintenance system
- Software maintenance contract

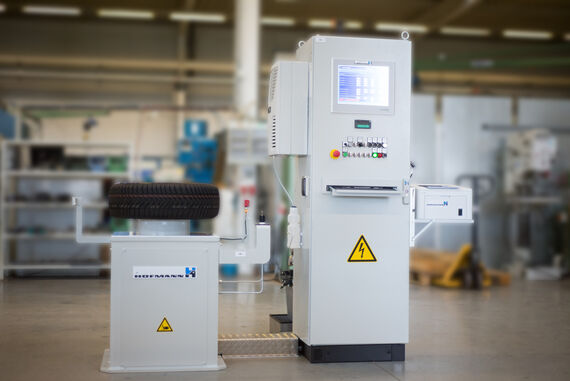

An offer for rebuilds, maintenance, as well as spare parts still exists for the WKM Type A/B/C model. Please contact the person listed below for further information.
If our offer of tire bead compression machines has convinced you, please use our inquiry form. We are looking forward to your inquiry.
